Reversible Disc Plough Manufacturer & Exporter in India

Built for Tough Soil Conditions. Designed for Efficient Land Preparation.

Shree Umiya is a trusted Reversible Disc Plough manufacturer and exporter from India, offering high-performance ploughs engineered for efficient primary tillage in challenging soil conditions. Designed with heavy-duty concave discs and a reliable hydraulic reversing system, our Reversible Disc Ploughs cut, lift, and turn the soil effectively while managing crop residues and weeds. Built for durability and smooth field operation, they help farmers improve soil structure, reduce field preparation time, and achieve higher productivity across diverse agricultural applications.

Enquire Now

Available Products

URDP M-35

URDP M-40

URDP H-35

URDP H-40

URDP H-70

UDP-F-402

UDP-F-403

UDP-F-404

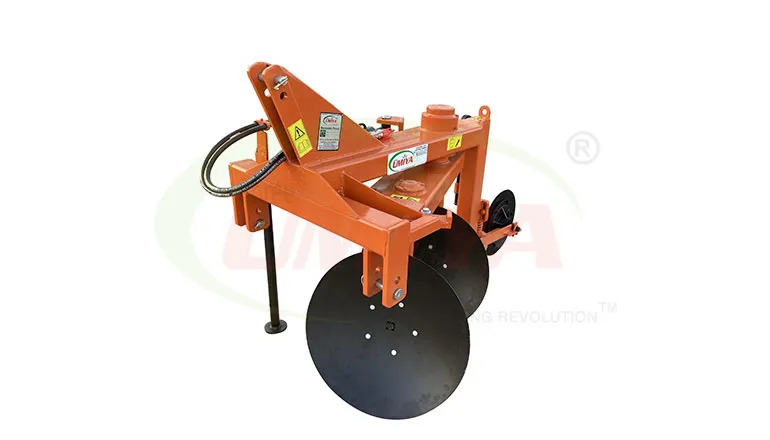

URDP M-35

Model

URDP M-35
Series

Disc Plough Series
Brand

Shree Umiya
Help

Enquire Now

Introducing the URDP M-35, a compact and efficient reversible disc plough designed for simple and effective farming. With its sturdy frame and versatile design, this plough is suitable for various agricultural tasks. It provides reliable performance and is compatible with tractors in the 35 to 45 HP range, making it a valuable tool for modern farming practices. The URDP M-35 is crafted to streamline ploughing operations, ensuring optimal efficiency and ease of use for farmers. Whether cultivating fields or preparing soil for planting, this reversible plough is a dependable companion for all your farming needs.

Product Specification

Model	URDP M-35
OVER ALL LENGTH	1864 MM
OVER ALL WIDTH	1095 MM
OVER ALL HEIGHT	1295 MM
FRAME	200 X 100 MM SQUARE PIPE
MAIN SHAFT	100 MM ROUND BAR
TYNE	70 MM ROUND BAR
NUMBER OF DISC	2 DISC
DISC DIA & THICKNESS	660 X 6 MM THICKNESS
WORKING WIDTH	508 MM
WEIGHT (APPROX)	380 KG
POWER REQUIRED (HP)	35 TO 45 HP

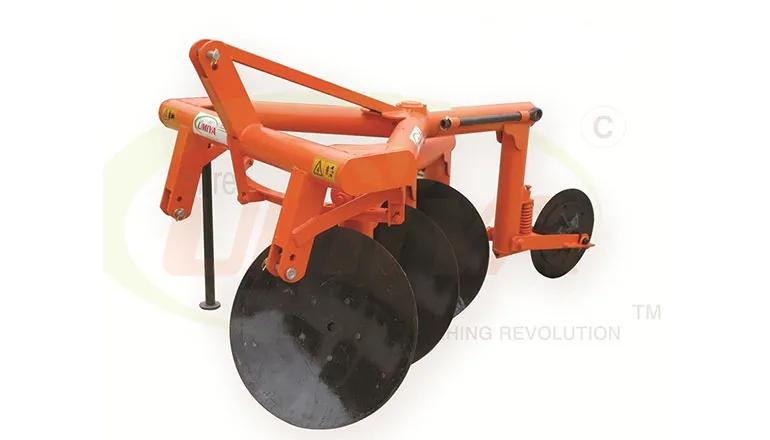

URDP M-40

Model

URDP M-40
Series

Disc Plough Series
Brand

Shree Umiya
Help

Enquire Now

Introducing the URDP M-40, a practical hydraulic reversible disc plough designed for efficient farming operations. With a sturdy frame and versatile design, this plough is suitable for various agricultural tasks. It provides reliable performance and is compatible with tractors in the 45 to 55 HP range, making it a valuable tool for modern farming practices. The URDP M-40 is crafted to streamline ploughing operations, ensuring optimal efficiency and ease of use for farmers. Whether cultivating fields or preparing soil for planting, this plough is a dependable companion for all your farming needs.

Product Specification

Model	URDP M-40
Overall length	2500 MM
Overall Width	1220 MM
Overall Height	1285 MM
Frame	200 X 100 MM Square pipe
Main Shaft	100 MM ROUND BAR
Tyne	70 MM ROUND BAR
Number of Disc	3 Disc
Disc Dia & Thickness	660 X 6 MM THICKNESS
Working Width	762 MM
Total Weight	525 Kg.
Power of Required HP	50 HP TO 75 HP

URDP H-40

Model

URDP H-40
Series

Disc Plough Series
Brand

Shree Umiya
Help

Enquire Now

Meet the URDP H-40, a robust reversible disc plough designed for effective farming. With a durable frame and versatile design, this plough is suitable for various agricultural tasks. It provides reliable performance and is compatible with tractors in the 50 to 75 HP range, making it a valuable tool for modern farming practices. The URDP H-40 is crafted to streamline ploughing operations, ensuring optimal efficiency and ease of use for farmers. Whether cultivating fields or preparing soil for planting, this plough is a dependable companion for all your farming needs.

Product Specification

Model	URDP H-40
Overall length	2500 mm
Overall Width	1220 mm
Overall Height	1285 mm
Frame	200mm x 100mm Square pipe
Main Shaft	100mm ROUND BAR
Tyne	70mm ROUND BAR
Number of Disc	3 Disc
Disc Dia & Thickness	660 X 6mm THICKNESS
Working Width	762 mm
Total Weight	525 Kg.
Power of Required HP	50 HP TO 75 HP

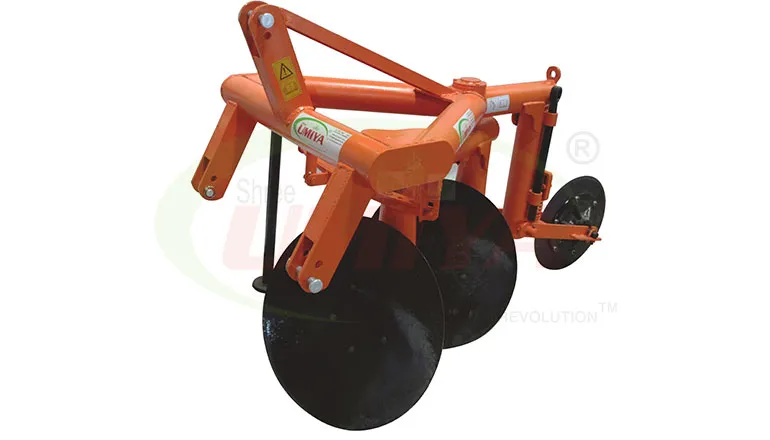

URDP H-35

Model

URDP H-35
Series

Disc Plough Series
Brand

Shree Umiya
Help

Enquire Now

Meet the URDP H-35, a robust reversible disc plough designed for effective farming. With a durable frame and versatile design, this plough is suitable for various agricultural tasks. It provides reliable performance and is compatible with tractors in the 35 to 35 HP range, making it a valuable tool for modern farming practices. The URDP H-40 is crafted to streamline ploughing operations, ensuring optimal efficiency and ease of use for farmers. Whether cultivating fields or preparing soil for planting, this plough is a dependable companion for all your farming needs.

Product Specification

Model	URDP H-35
Overall length	1864 mm
Overall Width	1095 mm
Overall Height	1295 mm
Frame	200mm x 100mm Square pipe
Main Shaft	100mm ROUND BAR
Tyne	70mm ROUND BAR
Number of Disc	2 Disc
Disc Dia & Thickness	660 X 6mm THICKNESS
Working Width	508 mm
Total Weight	380 Kg.
Power of Required HP	35 HP TO 45 HP

URDP H-70

Model

URDP H-70
Series

Disc Plough Series
Brand

Shree Umiya
Help

Enquire Now

Product Specification

Model	URDP H-70
Overall length	2815 mm
Overall Width	1275 mm
Overall Height	1315 mm
Frame	200mm x 100mm Square pipe
Main Shaft	100mm ROUND BAR
Tyne	70mm ROUND BAR
Number of Disc	4 Disc
Disc Dia & Thickness	660 X 6mm THICKNESS
Working Width	1118 mm
Total Weight	650 Kg.
Power of Required HP	65 HP TO 90 HP

UDP-F-402

Model

UDP-F-402
Series

Disc Harrow Series
Brand

Shree Umiya
Help

Enquire Now

Product Specification

Model	UDP-F-402
NO. OF DISC	2 DISC
FRAME	OD / 168 MM, ID / 146 MM
DISC DIAMETER	26 INCH, 28 INCH
DISTANCE BETWEEN DISC	23 INCH
WIDTH OF CUT	20 TO 21 INCH
BEARING HUB	2
WEIGHT	310 KG
REQUIRED (HP)	50 TO 60 HP

UDP-F-403

Model

UDP-F -403
Series

Disc Harrow Series
Brand

Shree Umiya
Help

Enquire Now

Product Specification

Model	UDP - F - 403
NO. OF DISC	3 DISC
FRAME	OD / 168 MM, ID / 146 MM
DISC DIAMETER	26 INCH, 28 INCH
DISTANCE BETWEEN DISC	23 INCH
WIDTH OF CUT	34 TO 36 INCH
BEARING HUB	3
WEIGHT	440 KG
REQUIRED (HP)	65 TO 80 HP

UDP-F-404

Model

UDP-F-404
Series

Disc Harrow Series
Brand

Shree Umiya
Help

Enquire Now

Product Specification

Model	UDP-F-404
NO. OF DISC	4 DISC
FRAME	OD / 168 MM, ID / 146 MM
DISC DIAMETER	26 INCH, 28 INCH
DISTANCE BETWEEN DISC	23 INCH
WIDTH OF CUT	45 TO 47 INCH
BEARING HUB	4
WEIGHT	510 KG
REQUIRED (HP)	85 TO 100 HP

Powerful Reversible Disc Ploughs
for Modern Agriculture

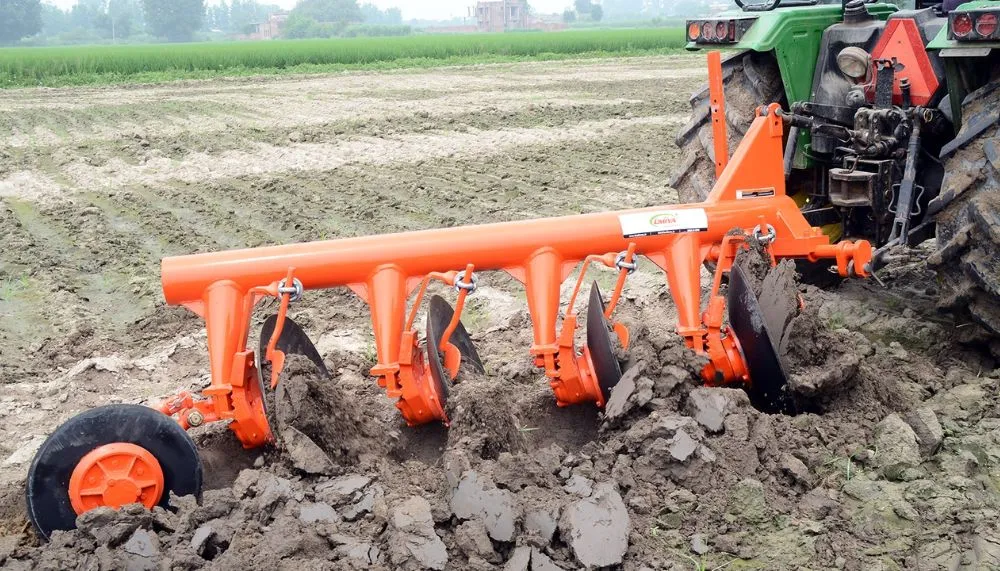

Hydraulic Reversible Disc Plough working in the field

The Reversible Disc Plough is a primary tillage implement specially designed for soils that are hard, dry, sticky, rocky, or rich in crop residues. Unlike mouldboard ploughs, it uses rotating concave discs to penetrate the soil, cut through roots and vegetation, and turn the soil efficiently with minimal resistance.

Equipped with a hydraulic reversing mechanism, the plough allows continuous operation without creating ridges or dead furrows, ensuring uniform field preparation while reducing unnecessary tractor movement. Its rugged construction and precision-engineered design make it an ideal choice for farmers seeking reliable performance, lower maintenance, and long service life. Whether preparing fields for cereals, cash crops, or commercial farming, Shree Umiya Reversible Disc Ploughs deliver outstanding productivity in demanding agricultural conditions.

Key Features

Every Shree Umiya Reversible Disc Plough is built around the following core strengths:

Heavy-duty frame construction for demanding field conditions

High-strength concave discs for effective soil penetration

Hydraulic reversing mechanism for continuous ploughing

Excellent performance in hard and stony soils

Efficient crop residue incorporation

Adjustable working depth for different field requirements

Reduced wear and maintenance

Compatible with a wide range of tractor models

Precision-engineered components for reliable performance

Long service life with minimal downtime

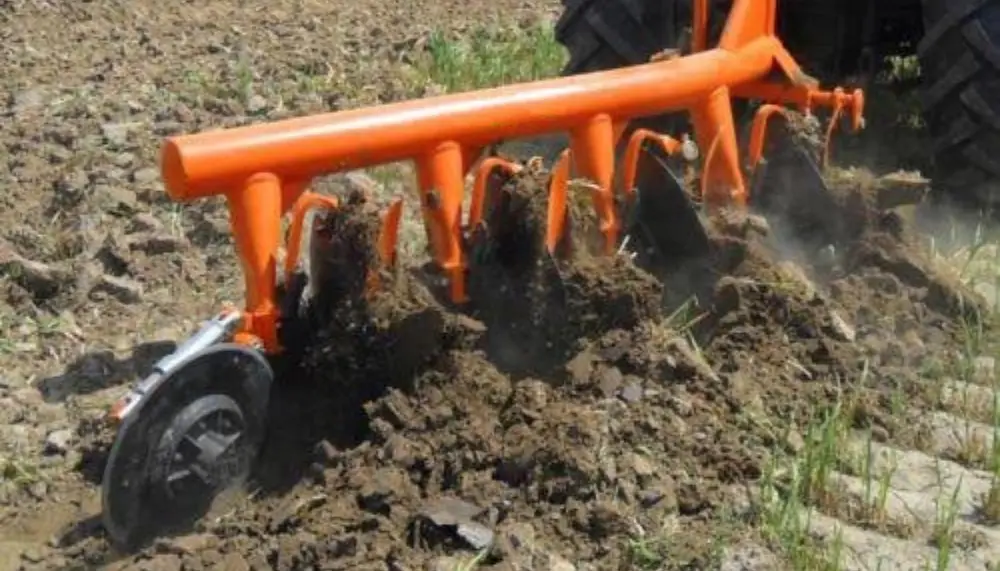

Benefits of Reversible Disc Plough

A Shree Umiya Reversible Disc Plough helps farmers prepare land more efficiently while improving soil health and reducing operational costs.

Effective in Difficult Soil Conditions

Its rotating disc design easily penetrates hard, dry, sticky, and root-infested soils where conventional ploughs may struggle, ensuring smooth and consistent tillage.

Better Soil Turning

The concave discs efficiently lift and invert the soil, burying weeds, crop residues, and organic matter to improve soil fertility and field cleanliness.

Improved Moisture Conservation

Proper soil inversion enhances water infiltration and helps retain soil moisture, supporting healthier crop growth.

Continuous Ploughing

The hydraulic reversing mechanism allows uninterrupted operation in both directions, eliminating unnecessary turning and improving field efficiency.

Lower Operating Costs

Reduced fuel consumption, fewer field passes, and minimal maintenance contribute to lower overall operating expenses.

Durable Construction

Manufactured using high-quality materials, the plough is designed to withstand heavy workloads and deliver reliable performance over the long term.

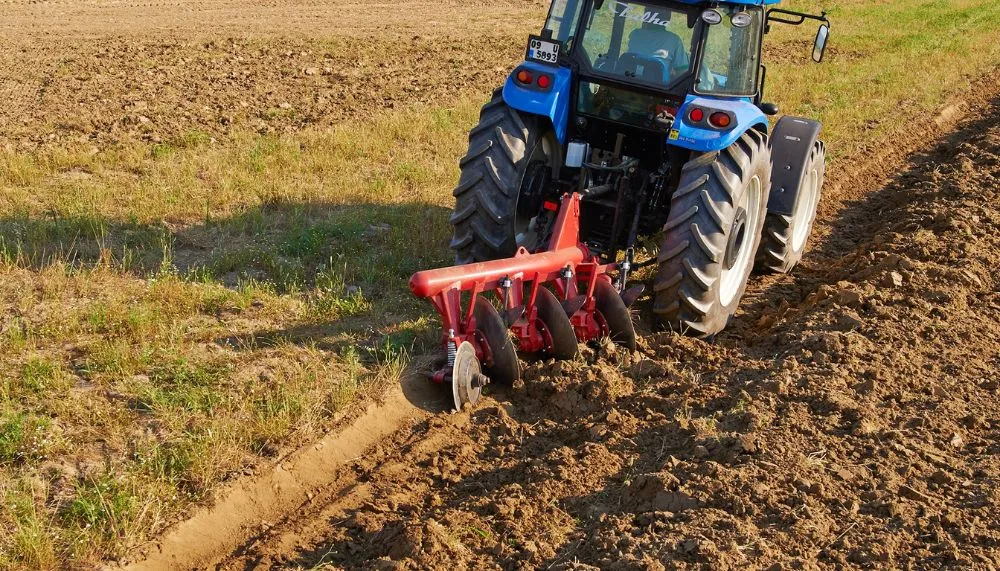

Applications

Shree Umiya Reversible Disc Ploughs are suitable for:

Primary tillage
Hard and compact soil cultivation
Rocky and stony fields
Land with heavy crop residues
Orchard land preparation
Sugarcane field preparation
Cotton farming
Commercial agriculture
Land reclamation
Seedbed preparation before secondary tillage

Suitable Soil Types

Designed for efficient operation in:

Hard Soil

Dry Soil

Clay Soil

Black Cotton Soil

Sandy Loam

Stony Land

Root-Infested Soil

Heavy Residue Fields

Suitable Crops

Ideal for preparing land before cultivating:

Cotton

Sugarcane

Wheat

Maize

Groundnut

Soybean

Pulses

Mustard

Oilseed Crops

Vegetables

Available Models

Shree Umiya offers multiple Hydraulic Reversible Disc Plough models with different disc sizes, working capacities, and tractor compatibility to suit various agricultural requirements. Each model is engineered to provide reliable performance, efficient soil inversion, and long-lasting durability, allowing farmers to select the right solution based on field conditions and tractor horsepower.

URDP M-35

URDP M-40

URDP H-35

URDP H-40

URDP H-70

UDP F-402

UDP F-403

UDP F-404

Quality You Can Trust

Every Reversible Disc Plough is manufactured using premium-grade raw materials and advanced production techniques to ensure exceptional strength, precision, and durability. Our products undergo rigorous testing by government-recognized institutes, ensuring compliance with the highest quality standards established by the Government of India. Built for demanding field conditions, Shree Umiya Reversible Disc Ploughs deliver dependable performance season after season.

Why Choose Shree Umiya?

Precision-engineered agricultural implements built with heavy-duty construction, an advanced hydraulic reversing system, and government-recognized quality testing — trusted by farmers across India and international markets.

Precision-engineered agricultural implements
Heavy-duty construction for longer service life
Advanced hydraulic reversing system
Excellent performance in challenging soil conditions
High-quality discs with superior wear resistance
Government-recognized quality testing
Export-quality manufacturing standards
Reliable after-sales support
Wide range of models for different tractor capacities
Trusted by farmers in India and international markets

Frequently Asked Questions

What is a Reversible Disc Plough?

A Reversible Disc Plough is a primary tillage implement that uses concave discs to cut, lift, and turn the soil. Its hydraulic reversing mechanism enables continuous ploughing without creating ridges or dead furrows.

What are the advantages of a Reversible Disc Plough?

It performs exceptionally well in hard, dry, stony, and residue-filled soils, improves soil inversion, incorporates crop residues, reduces fuel consumption, and enhances field productivity.

Which soils are suitable for a Reversible Disc Plough?

It is ideal for hard, clay, black cotton, sandy loam, rocky, and root-infested soils where disc ploughs offer better penetration than conventional ploughs.

Can it be used with different tractor models?

Yes. Shree Umiya offers multiple models designed to match different tractor horsepower ranges and farming requirements.

Do you export Reversible Disc Ploughs?

Yes. Shree Umiya supplies export-quality Reversible Disc Ploughs to farmers, dealers, distributors, and agricultural businesses in international markets.
