Tractor Mounted Boom Sprayer Manufacturer

Efficient Field Spraying
for Modern Agriculture

Shree Umiya Tractor Mounted Boom Sprayers are designed for efficient and uniform application of crop protection solutions across agricultural fields. Their boom-mounted spraying system helps provide consistent coverage over larger areas, making them suitable for crop protection and other liquid agricultural applications. Built for reliable field operation, these sprayers help farmers save time and labour while improving spraying efficiency.

Enquire Now

UTMS-B-005

Model

UTMS-B-005
Series

Tractor operated Sprayer
Brand

Shree Umiya
Help

Enquire Now

The UTMS-B-005 Tractor Operated Boom Sprayer is a great tool to protect your crops. It has a 500-litre tank, so you can spray small to medium fields without stopping. The sprayer uses a powerful spray called the HTP (Horizontal Triplex Power) pump with a robust construction that works with 2.0–5.0 kW power. It sprays evenly with special hollow cone nozzles.

This sprayer works well with tractors that have 35 HP or more. It’s a simple and helpful way to keep your crops healthy. Click "Enquire Now" to learn more!

Product Specification

Model	UTMS-B-005
Tank Capacity	500 Litre
Type	Boom, Winder or Boom + Winder
Boom Total Length	9 Mtr
Boom Height	2 to 6 Feet (Adjustable)
Nozzle Distance on Boom	18" - 24" - 27" (Adjustable)
Winder Hose Pipe Length	300 Mtr
Pump Flow Capacity	50 - 65 LPM
Pump Type	HTP
P.T.O	540 RPM
Winder Type	Clutch System
Weight	Without Boom - 240 kg / With Boom - 390 kg
Attachments	Auto Filling System, 2 Nos Gun with 6 Mtr Pipe Each Gun
Power Required	35 HP & above

Why Pick the UTMS-B-005?

Save Time : The tank and powerful pump let you spray large areas quickly. No need for extra work!
Keep Crops Safe : The sprayer spreads the liquid evenly, protecting crops from pests and diseases. Healthy crops mean better harvests!
Built to Last : This sprayer is strong and made from high-quality materials. It will help you season after season.

What Makes the UTMS-B-005 Special?

Strong and Steady Pump : The Horizontal Triplex Power (HTP) pump has a high flow rate with pressure regulation capabilities that can be suitable for a variety of spray liquids. It needs 2.0–5.0 kW of power and keeps your crops protected.
Smart Spray Nozzles : The sprayer has hollow cone nozzles that spray the liquid evenly and minimize clogging. Every corner of your field gets the care it needs!
Works with 35 HP Tractors : This sprayer can be used with any tractor that has at least 35 HP power. That means most farmers can use it easily.

Easy to Use and Maintain

The UTMS-B-005 Tractor Operated Boom Sprayer is designed to be simple to operate. Whether you're a seasoned farmer or just starting out, you can quickly learn how to use it. The controls are easy to understand, so you won't waste time figuring things out.

Maintenance is just as straightforward, cleaning the tank and nozzles after use is quick and hassle-free, ensuring the sprayer stays in optimal condition. Built with durable, high-quality materials, the UTMS-B-005 is designed to withstand rigorous use, reducing the need for frequent repairs and replacements, and providing you with a cost-effective, long-lasting solution.

Start Farming Smarter

The UTMS-B-005 tractor operated boom sprayer is your partner for growing healthy crops. It’s easy to use and saves you time and energy. Take care of your fields and enjoy better farming today!

Tractor Mounted Boom Sprayer
for Uniform Crop Coverage

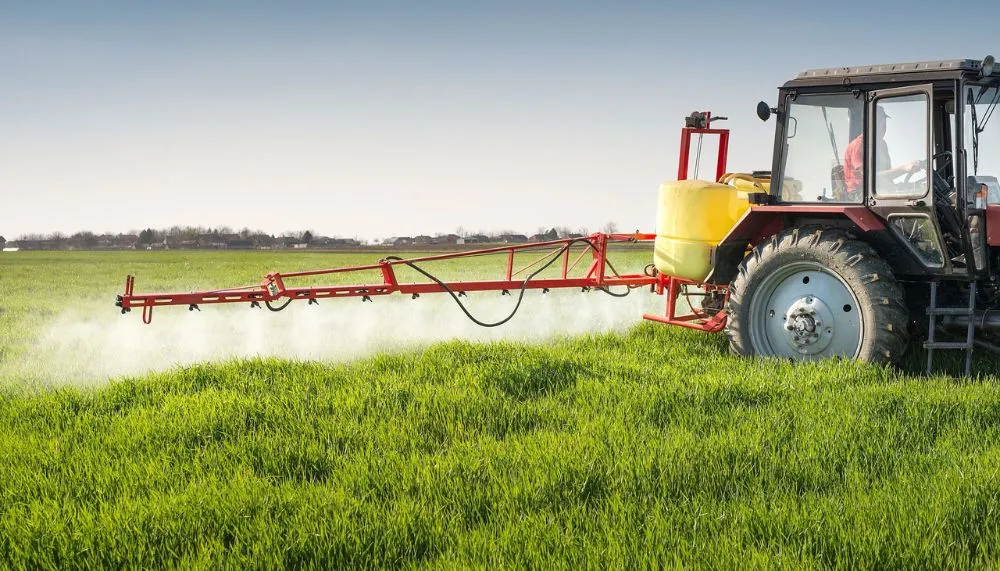

Shree Umiya Tractor Mounted Boom Sprayer working in the field

A Tractor Mounted Boom Sprayer is an agricultural spraying implement designed to distribute liquid inputs across field crops through a series of spray nozzles positioned along a horizontal boom. The wide boom allows farmers to cover a larger area during each pass, making the equipment suitable for efficient field spraying operations.

Shree Umiya Tractor Mounted Boom Sprayers are designed with a focus on consistent spray distribution, practical operation, and dependable field performance. Mounted to a tractor, the sprayer can be used across agricultural fields where timely and uniform application is important.

The equipment is particularly useful for farmers managing larger cultivated areas, as it can help reduce manual spraying effort and improve operational efficiency. The appropriate sprayer configuration should be selected according to the crop, field size, tractor capacity, spray requirement, and application conditions.

Key Features

Every Shree Umiya Tractor Mounted Boom Sprayer is built around the following core strengths:

Tractor-mounted design for efficient field operation

Wide spray boom for greater field coverage

Multiple spray nozzles for consistent application

Designed for uniform liquid distribution

Suitable for large agricultural fields

Reduces manual spraying effort

Helps improve spraying productivity

Practical operation and maintenance

Robust construction for regular agricultural use

Designed for compatibility with suitable tractor configurations

Benefits of Tractor Mounted Boom Sprayer

Wider Field Coverage

The extended boom enables spraying across a wider section of the field during each tractor pass, helping improve overall field efficiency.

Uniform Application

Multiple spray nozzles positioned along the boom help distribute the spray more consistently across the target area.

Saves Time and Labour

Compared with manual spraying methods, tractor-mounted operation can help farmers cover larger areas in less time with reduced labour requirements.

Better Operational Efficiency

The combination of tractor mobility and boom-based spraying allows farmers to complete crop protection operations efficiently across large cultivated areas.

Suitable for Commercial Farming

The equipment is particularly useful for farmers and agricultural businesses managing larger fields where timely spraying is essential.

Convenient Tractor-Based Operation

Mounting the sprayer on a suitable tractor allows farmers to integrate spraying operations into their existing agricultural equipment setup.

Applications

Shree Umiya Tractor Mounted Boom Sprayers can be used for agricultural spraying operations involving suitable liquid inputs, including:

Crop protection
Agricultural spraying
Field crop spraying
Herbicide application
Pesticide application
Fungicide application
Liquid agricultural input application
Commercial farming
Large-scale field operations

The application and spray solution should always be selected according to the crop, product manufacturer's instructions, and applicable agricultural practices.

Designed for Different Farming Requirements

The right boom sprayer configuration depends on several factors, including:

Tractor horsepower
Tank capacity
Boom width
Crop type
Field size
Row spacing
Required spray volume
Nozzle configuration

Farmers should select the appropriate model based on their tractor specifications and intended spraying application.

Suitable Crops

Tractor Mounted Boom Sprayers are suitable for spraying operations across a variety of field crops, depending on the crop height, row spacing, spray requirement, and selected boom configuration. Potential applications include:

Wheat

Maize

Cotton

Soybean

Groundnut

Pulses

Oilseed Crops

Vegetables

Other commercial field crops

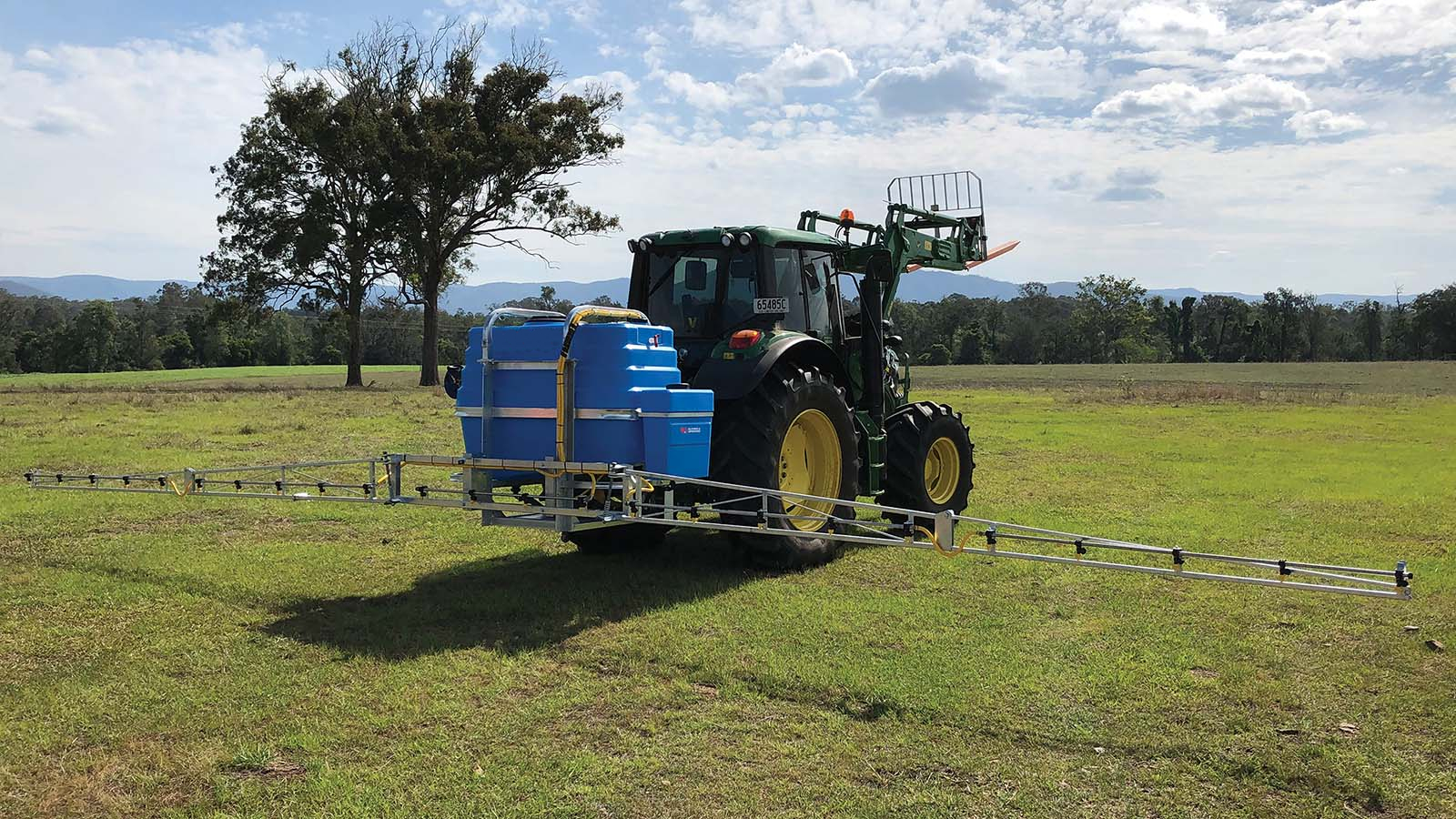

How to Choose the Right Tractor Mounted Boom Sprayer

Choosing a boom sprayer should start with the tractor and field requirements. Consider the tractor horsepower, tank capacity, boom width, crop type, field size, row spacing, and intended application before selecting a model.For larger fields, a suitable wider boom can help improve coverage and reduce the number of passes required. The tank capacity should also match the field size and available water or filling facilities. Most importantly, the sprayer should be properly matched with the tractor and operated according to the manufacturer's recommendations.

Quality testing of Shree Umiya agricultural implements

Quality You Can Trust

Shree Umiya agricultural implements are manufactured with a focus on durability, reliable operation, and consistent field performance. Quality materials and controlled manufacturing processes are used to develop equipment suitable for demanding agricultural operations.

Our equipment is subjected to rigorous testing by government-recognized institutes, ensuring adherence to the highest standards set by the Government of India. This quality-focused approach supports reliable performance and long service life across different agricultural applications.

Why Choose Shree Umiya Tractor Mounted Boom Sprayer?

Precision-engineered agricultural equipment designed for efficient field spraying, with robust construction and government-recognized product testing — export-quality equipment backed by support for farmers, dealers, and distributors.

Precision-engineered agricultural equipment
Designed for efficient field spraying
Wide boom for greater coverage
Consistent spray distribution
Reduced manual labour
Suitable for commercial farming
Robust construction
Quality-focused manufacturing
Government-recognized product testing
Export-quality agricultural equipment
Support for farmers, dealers, and distributors

Frequently Asked Questions

What is a Tractor Mounted Boom Sprayer?

A Tractor Mounted Boom Sprayer is an agricultural spraying implement mounted on a tractor and equipped with a horizontal boom containing multiple spray nozzles for distributing liquid across field crops.

What is a Tractor Mounted Boom Sprayer used for?

It is primarily used for efficient field spraying, including suitable applications of pesticides, herbicides, fungicides, and other liquid agricultural inputs.

What are the benefits of a boom sprayer?

A boom sprayer provides wider coverage, more consistent spray distribution, reduced manual labour, and faster field operations compared with manual spraying.

Which tractor is suitable for a Tractor Mounted Boom Sprayer?

The suitable tractor depends on the specific sprayer model, tank capacity, boom configuration, and operating requirements. The manufacturer's recommended tractor specifications should be checked before purchase.

Is a boom sprayer suitable for large farms?

Yes. Its wider spray coverage and tractor-based operation make it particularly useful for larger agricultural fields and commercial farming operations.

How do I choose the right boom width?

Boom width should be selected according to the field size, crop arrangement, tractor capacity, and required spraying efficiency. A suitable configuration can help reduce unnecessary field passes.

Does Shree Umiya export Tractor Mounted Boom Sprayers?

Yes. Shree Umiya supplies agricultural implements to customers in India and international markets, including farmers, dealers, distributors, and agricultural businesses.
